New
for 2007! Atlantic Towers has developed a complete line of “Tower
in a Box” structures designed specifically for Inflatable Boats,
with a transom mounted arch “Roll Bar” and a special leg
configuration for the Trampoline T-top.
Atlantic Tower's new Transom Mounted Arch for Inflatables features proprietary telescoping design that allows adjustment to fit the transom of nearly any inflatable. It is built from a high strength welded frame of schedule 40 marine grade aluminum pipe nearly 2" in diameter and is finished in durable salt resistant bright clear anodizing. The Inflatable Arch has the appearance and strength of a custom welded unit when installed on your boat and includes four m ounting plates (2 per side) which will accommodate antennas, navigation lights & other gear.
• Adjustable to fit transom of nearly any inflatable
• All hardware, backing plates & mounting bolts included
• TIG Welded Anodized Aluminum Pipe nearly 2" in Diameter
• Cables and Wiring run inside the frame
• Four transom mounting points
• Boxed for convenient delivery
Single
Loop Transom Mounted Arch for Inflatable: $699 |
The
Single Loop Arch with optional all round white Navigation light allows
a complete International Rule installation when combined with red/green
side lights (not included.) installed on lower mounts. |
 |
|
| Single
Loop Transom Mounted Arch for Inflatable
with Equipment Platform: $1099 |
With
the addition of the equipment platform, the Transom Mounted Arch allows
installation of Law Enforcement or First Responder lighting or radar.
Adjustable clamp assembly allows leveling of platform regardless of transom
angle.
|
 |
 |
 |
|
|
Four
Point Arch for Rigid Inflatables: $1099
|
This arch is designed for rigid hull inflatables
that have fully molded aft decks. The forward and after loops of the arch
adjust for width independently from 40" on center to a maximum of 60".
The mounting hardware base footprint is just 2" in diameter and include
Delrin leveling wedges to allow easy adjustment of the bases to allow
the arch to fold or remove easily with quick release pins . The arch ships
complete with all mounting hardware, back up plates, and other materials
needed for a complete installation.
 |
Trampoline
T-top with Special Leg Configuration for Rigid Inflatables: $1599
|
|
|
This
leg configuration brings the Trampoline T-top Mounting Bases closer in
the fore and aft direction to accommodate the smaller consoles on RIBs.
The cross bar is lower as well to facilitate installation. As with all
Atlantic Towers Trampoline T-tops the legs are fully adjustable port to
starboard. The “lid” of the Trampoline T-top may even be offset
to the port or starboard on the supporting legs, to compensate for offset
consoles. For more Trampoline T-top info, click
here.
|
|
| Frequently
Asked Questions: Inflatable Boat Products |
| |
Will
the Transom Mounted Arch fit my Inflatable Boat?
Because
of it’s adjustability the Transom Mounted Arch will fit any inflatable
with an open transom. The Transom Mounted Arch can be mounted on the inboard
or outboard side of the transom, and requires a clear mounting area of
at least 26” wide (see tech drawing). Call us with any questions.
Click
image on right for enlarged view.
Click here for metric dimensions. |
|
|
|
Can
I install the Transom Mounted Arch myself?
The
Transom Mounted Arch was designed for owner installation. Everything needed
is included and shipped with your arch. If you are comfortable with hand
tools, the “Trampoline” T-top comes with instructions and
all the backing plates and hardware required for a thru bolted installation.
Four holes are drilled in the transom for the installation. (Don’t
want to install the Arch yourself? Check our “Services” page
for professional installers with whom our customers have had a good experience). |
 |
How
is the Transom Mounted Arch shipped to me?
The Transom Mounted Arch is packaged to ship by DHL
Ground or other package service. We have discounted arrangements which
cover all 48 states.. We can also ship to Alaska, Hawaii and any overseas
city, call us for details. The Transom Mounted Arch is packed in a single
large cardboard carton and normally ships to a commercial address (like
your business or marina) Residential delivery is additional (call for
details). (New Jersey shipping addresses or pick ups at our warehouse
must pay 7% sales tax) |
What
happens if my Transom Mounted Arch is damaged in shipping?
Atlantic Towers wants you to enjoy your boat, not
spend the season chasing a freight claim. If your “Trampoline”
T-top arrives damaged, just refuse the shipment and we will send you a
new one at no additional cost to you. |
Can
I return my Transom Mounted Arch if I decide I don’t want to keep
it?
Atlantic
will accept the return of any Standard Structure within 30 days of it’s
receipt by you. Simply return the Structure in the original packaging
in new condition freight pre-paid and we will refund the purchase price
less a 10% restocking fee. |
Is
my Transom Mounted Arch guaranteed?
Yes, for 5 years, see the warranty section of our
website for details. |
How
do I get my Transom Mounted Arch?
You can purchase a Transom Mounted Arch directly
from Atlantic Towers or our authorized reseller partners around the world.
|
           |
Will the "Pro Trampoline" T-top fit my center console boat?
Because of it's adjustability the Pro "Trampoline" T-top (Model TTS7172/55.5) will fit 90% of center console boats up to 23’ and over. Inboard powered center console boats, where all or part of the console tilts, may require special hardware or leg configurations.. |

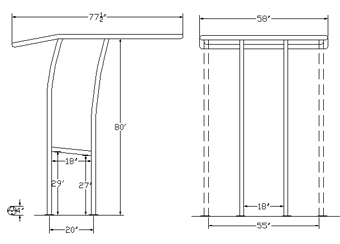

"Pro Trampoline" T-Top Model TTS7172/55
Click image for enlarged view.
Click here for metric dimensions. |
Fitting Options for Differing Center Consoles
A special leg configuration are available as an option. For those center consoles with a large side access door to a head compartment or storage area, Supporting Legs Model TTS7374 provides greater spread between legs and a higher cross bar, which will clear most side openings.
|
Supporting Legs Model TTS7374
Click image for enlarged view.
Click here for metric dimensions.
|
Can I install the “Pro Trampoline” T-top myself?
The “Pro Trampoline” T-top was designed for owner installation and is typically no more complicated than installing rod holders or outriggers, just a few more pieces. If you are comfortable with hand tools, the “Pro Trampoline” T-top comes with instructions and all the backing plates and hardware required for a thru bolted installation (If your boat does not allow access for thru bolting, call us and we can explain alternate methods. (Don't want to install the Pro Trampoline T-Top yourself? Check ourServices page for professional installers with whom our customers have had a good experience)
|
How is the “Pro Trampoline” T-top shipped to me?
Although the “Pro Trampoline” T-top is not heavy it is too large to go by UPS. We have discounted freight arrangements with several trucking companies, which cover all 48 states. We can also ship to Alaska, Hawaii and any overseas city, call us for details. The “Pro Trampoline” T-top is packed in two cardboard cartons (like a mattress) and normally ships to a commercial address. |
 |
What happens if my “Pro Trampoline” T-top is damaged in shipping?
Atlantic Towers wants you to enjoy your boat, not spend the season chasing a freight claim. If your “Trampoline” T-top arrives damaged, just refuse the shipment and we will send you a new one at no additional cost to you.
|
Can I return my “Pro Trampoline” T-top if I decide I don’t want to keep it?
Atlantic will accept the return of any Standard Structure within 30 days of it’s receipt by you. Simply return the Structure in the original packaging in new condition freight pre-paid and we will refund the purchase price less a 10% restocking fee
|
|
|
