Fully Adjustable legs allow the WalkAround "Tee"
Hardtop to be custom configured during assembly for
nearly all walkaround cabin on boats to 25'

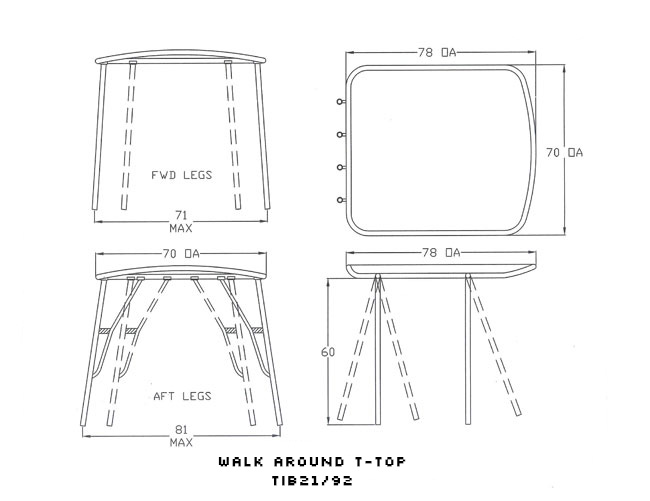

Supporting legs may be mounted "outside" or
"inside" as shown in the illustrations.
Legs assemble easily to the top frame without drilling. Because our proprietary clamps will not mar the
finish, the legs may be repositioned as often as you wish during the assembly process for a perfect fit.
Legs may be trimmed to length before installation of base fittings to adjust WalkAround “Tee”
Hardtop to optimum height regardless of base pad mounting location.
Choice of base fittings make locating and mounting the legs simple. All the bases accommodate any angled
surface. No fairing pads needed for perfectly flat fit.

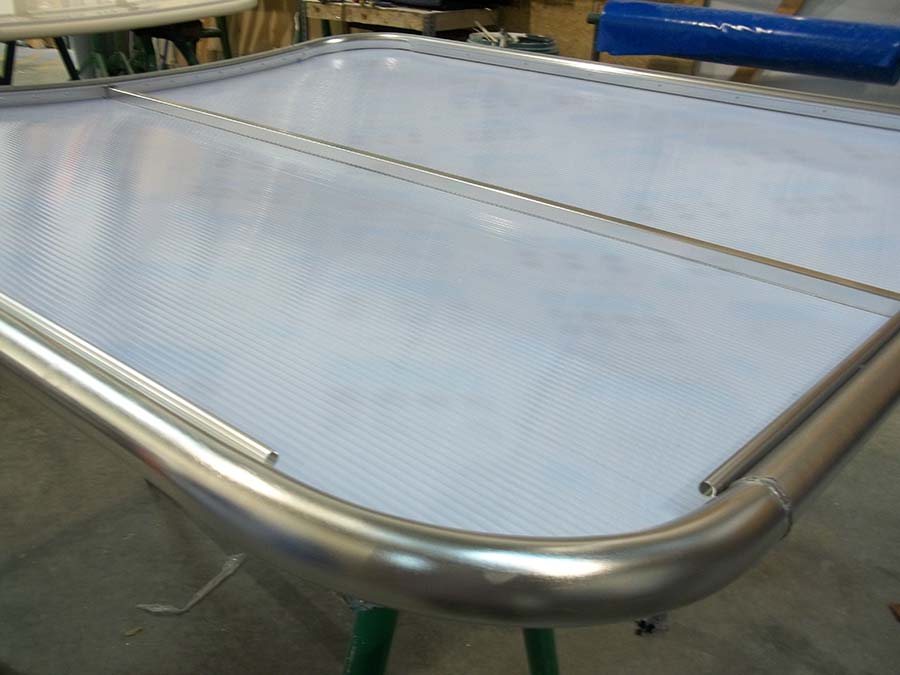

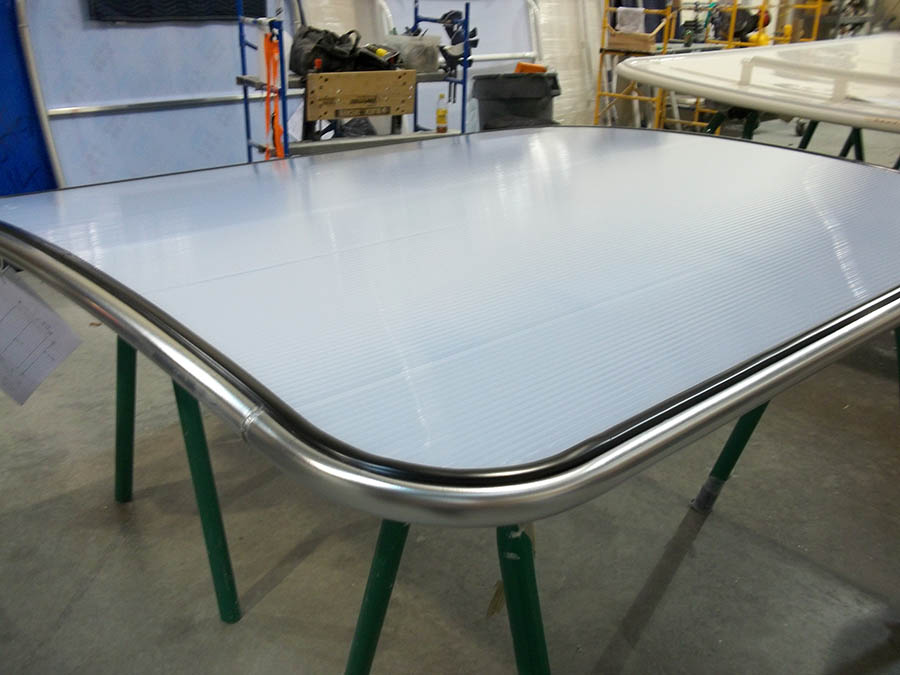

Generously sized fiberglass top measures 70” wide by 78” long. Available in two standard gelcoat
colors, the top features a flat inside surface to make installation of canvas rail simple.

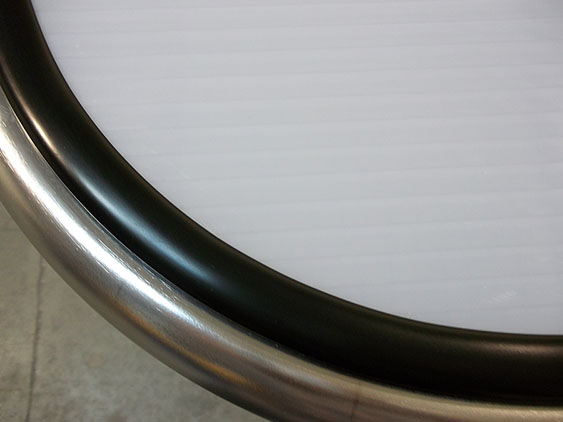

High Strength welded frame of schedule 40 marine grade aluminum pipe 1 1/2" I.D. which measures 1.9"
outside diameter, finished in durable salt resistant bright clear anodizing.
Welded Four Rod Rocket Launcher Option Features four aluminum
tapered rod holders
anodized in gold. Each
rod holder features a
welded butt pin and
vinyl liner to protect
your rods. $289
Diagonal Brace Option A few center console boats may
provide limited areas to install the
standard side brace, or if you have
mounted a great deal of heavy
equipment on your Trampoline T-Top,
such as electronics enclosures,
radar, etc, you may want the added
stability and support of diagonal
sway braces. Fully adjustable and may
be secured either on top of the
console or on it's forward face. $269
Individual Adjust-O-Launcher Option Aluminum rod holders can
be mounted anywhere on the
perimeter of the "Trampoline"
T-top frame. A unique
patented design available
exclusively from Atlantic
Towers, manufactured from
all aluminum in natural
aluminum or gold anodized
finish Adjust-O-Launchers
can be pivoted thru 12
positions for unmatched
flexibility. $99
each
/ 4
or
more
$89
each
55 Watt Deck Lamps Option Pair of 55 watt deck lamps from BEP
(the New Zealand manufacturer of
quality marine electrical equipment)
provide plenty of illumination for
night fishing, and other activities
Includes mounting hardware for
installation on round pipe perimeter
of "Trampoline" T-top. $129 pair
Antenna Bracket Option Antenna Bracket threaded 1"-14 for
mounting VHF, GPS and other antennas.
Clamps to perimeter of "Trampoline"
t-top for fast installation. $89
Anchor/Running Light Option A two way navigation lamp
installed on an anodized aluminum
mast with anodized finish to match
the "Trampoline" T-top.
Functions as all round light with
both sides illuminated, or forward
steaming light with just forward
half illuminated. Custom fitted
shoe allows easy bolt-on
installation on perimeter of
"Trampoline" T-top.
Choose 5" height (MA222A) or
18" height (MA220A). $149
Pair of Starboard™ Mounting Bars Option The pair of Starboard™
Mounting Bars allows
installation of
equipment such as
radar by bolting thru
top fabric into
mounting bars. May
also be used to
support overhead
electronics consoles.
$139
Split Couplings Option Split Couplings installed just
above the fore and aft cross
bar in each supporting leg,
this allows the upper portion
of the T-top to be lifted off
by removing (8) eight allen
screws. If you store your boat
in a garage or building with
limited door or ceiling
clearance, these couplings
allow you to install a T-top
and still get your boat
inside. (special order only) $290
**NOTE: There is a 10% re-stocking charge for cancelled or returned merchandise**
Due to our dedication to continued product improvement, we reserve the
right to make changes without notice.
Will the WalkAround “Tee” Hardtop fit my walkaround boat?
Because of it’s adjustability the WalkAround “Tee” Hardtop will fit 90% of walkaround style
boats to about 25’ It is available with two different leg configurations, generally divided into
those installations which will use “outside” mounting, and those that will use “inside”
mounting. We suggest you call us to discuss which is the best for your particular model.
Because the WalkAround “Tee” Hardtop is a modular system like all of our “Tower
in a Box” products, we will gladly exchange mounting hardware or even legs, if you
think something other than what you received will work better in your particular application.
Can I install the WalkAround “Tee” Hardtop myself?
The WalkAround "Tee" Hardtop was designed for owner installation and is typically
no more complicated than installing rod holders or outriggers, just a few more pieces. If you are
comfortable with hand tools, the WalkAround "Tee" Hardtop comes with instructions and all the
backing plates and hardware required for a thru bolted installation (Don't want to install the
WalkAround "Tee"
Hardtop yourself?Check our Services
page for professional installers with whom our customers have had a good experience)
How is the WalkAround “Tee” Hardtop shipped to
me? Although
the WalkAround "Tee"
is not heavy it is too large to go
by UPS. We
have discounted freight arrangements with several trucking
companies, which cover all
48 states and Canada. We can also ship to Alaska,
Hawaii and any overseas city, call
us for details. The WalkAround "Tee" Hardtop is packed in a single large
cardboard carton (like a mattress). Residential delivery is additional (call for
details). (New Jersey shipping addresses or pick ups at our warehouse
must pay 7%
sales tax)
What happens if my WalkAround “Tee” Hardtop is damaged in
shipping? Atlantic Towers wants you to enjoy your boat,
not spend the season chasing a freight claim. If
your WalkAround "Tee" Hardtop arrives
damaged, just refuse the shipment and we will
send you a new one at no additional cost to you.
Can I return my WalkAround “Tee” Hardtop if I decide I don’t
want to keep it? Atlantic will accept the return of any
Standard Structure within 30 days of it’s
receipt by you. Simply return the
Structure in the original packaging in
new condition freight pre-paid and we
will refund the purchase price less a 10%
restocking fee
Is my WalkAround “Tee” Hardtop guaranteed?
Yes, for 5 years, see the warranty section of
our website for details.
How do I get my WalkAround “Tee” Hardtop? You
can
purchase
a
WalkAround
"Tee"
Hardtop
directly
from
Atlantic
Towers
or
our
authorized
reseller
partners
around
the
world.
