Welded schedule 40 frame
The Pro Tramp has a high-strength welded frame of schedule 40 marine-grade aluminum pipe measuring 1.9 inches outside diameter, finished in durable, salt-resistant bright clear anodizing.

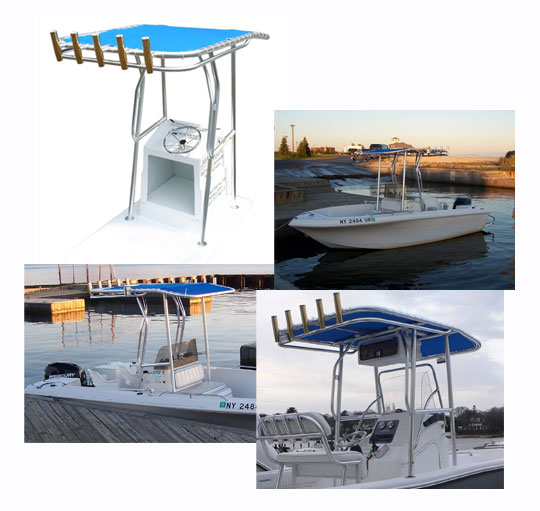

Pro Trampoline T-Top
Welded, adjustable coverage for center-console boats.
Historical starting price $1,999
Request fit guidanceProduct overview
Pro-level strength with owner-adjustable fit.
Universal T-Top geometry developed for hundreds of center-console makes and models.
- Console width
- Up to 48″
- Mounting
- 6 points
- Coverage
- 23′+ boats
Construction and fit
The working details behind the Pro Tramp.
Compact reference views support the technical information without enlarging the historical, lower-resolution photography beyond its useful size.

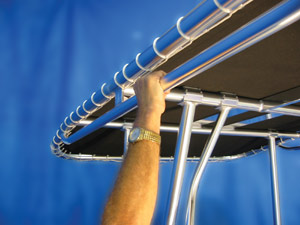

Integral handrails and braces
Every Pro Tramp T-Top includes welded integral handrails and braces as part of the structure.

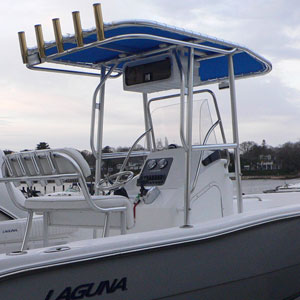

Console-area coverage
The Pro Trampoline-style sunshade comfortably covers the console area of boats measuring 23 feet or more.
Fully adjustable leg fit
The legs fit console widths up to 48 inches. A custom extruded clamp assembly makes beam adjustment straightforward and locks permanently when tightened.

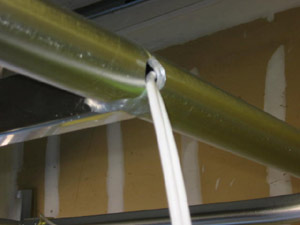

Concealed wiring path
Electrical wiring can be routed inside the frame to protect the installation and preserve a cleaner finished appearance.

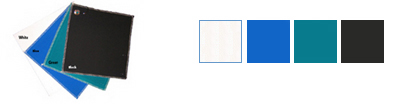

Four trampoline colors
The historical configuration offered a choice of four Trampoline fabric colors at no additional charge.
Six-point mounting
Six mounting points secure the Pro Tramp for most installations. Additional standoffs and braces were available for unusual console shapes and heavy-duty applications.
Aerodynamic profile
The top geometry helps wind pressure push downward on the structure while towing or running in flat water.
Compatible add-ons
Configure the structure for your boat.
Review dedicated add-on pages for current availability and pricing.
Welded Five Rod Rocket Launcher
Five tapered aluminum rod holders with welded butt pins and vinyl liners.
Diagonal Brace
Adjustable support for restricted mounting locations or heavier equipment.
Product FAQs
Frequently Asked Questions
Historical guidance states that the TIB7172/55.5 configuration fits 90% of center-console boats up to 23 feet and over. Tilting consoles may require special hardware.
