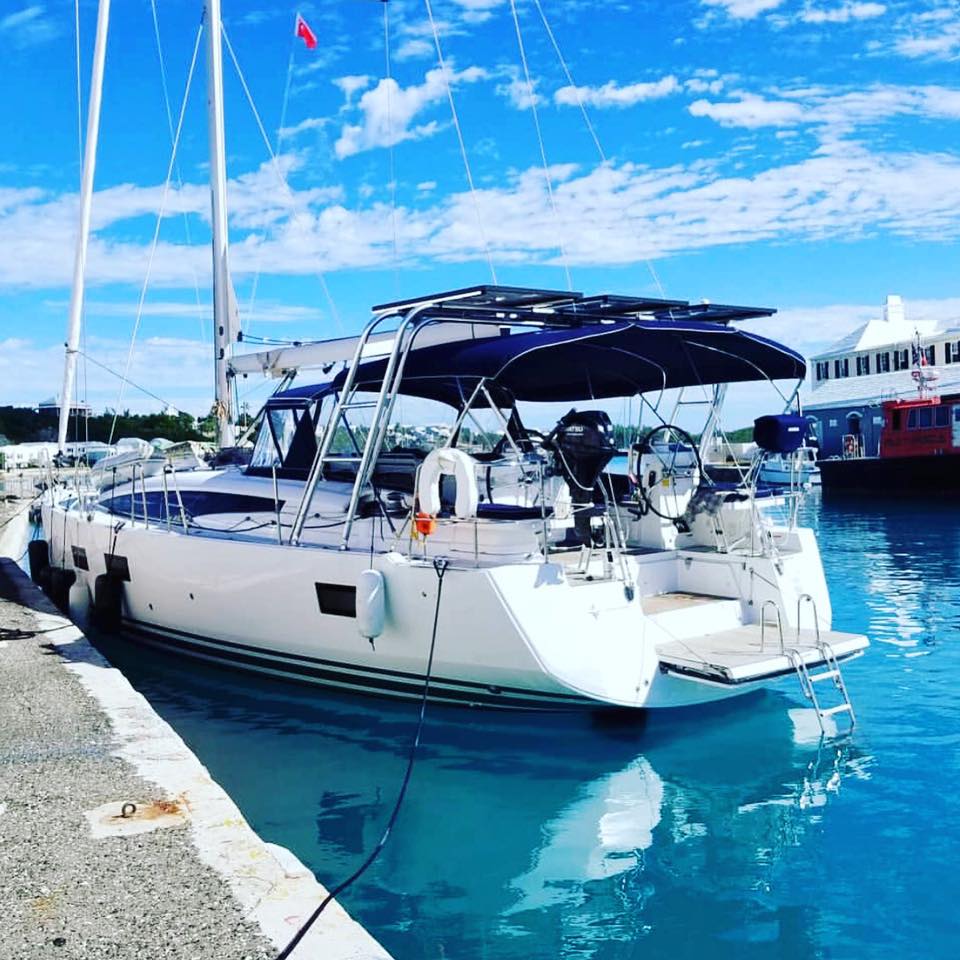

Designed for large monohulls and catamarans, the Super Sail Arch is the "Swiss Army Knife" of saif yatch structures.
A modular system with a large array of accessories that clamp on or bolt on allowing you add or chaange equipment at any time.
Support large solar panel arrays, lift a center console tender and more.
A design that has been extensively tested in our shop and by the experience of sailors around the world.

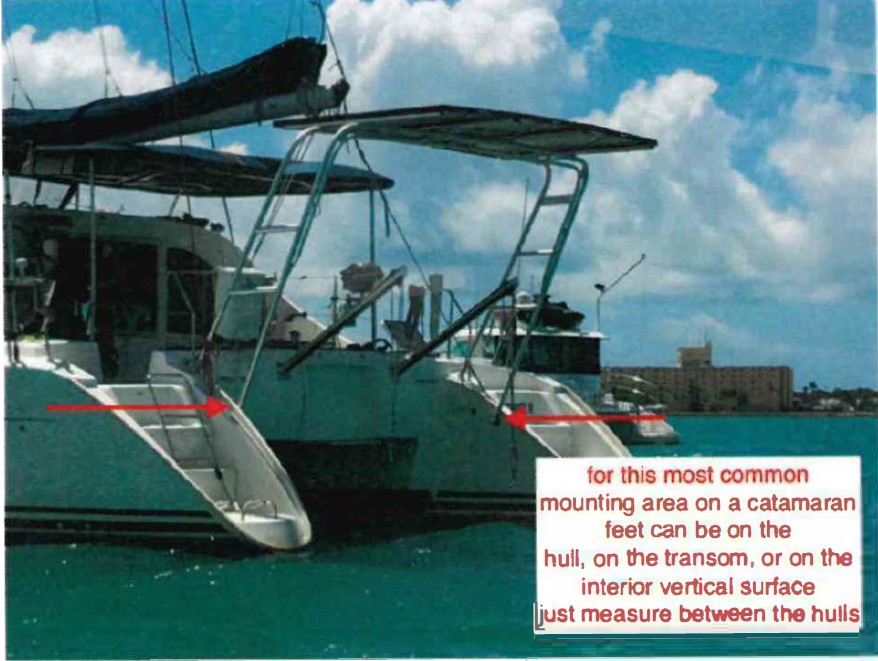

Super Sail Arch, distance between forward legs and after legs is the same
Super Sail In Line
Mounting Centers
Inches
Forward Legs
After Legs
Minimum
Maximum
Minimum
Maximum
TIB111/112
Super Sail Arch
TIB34600
120
170
120
170
$6,600.00
TIB34650
150
200
150
200
$6,800.00
Super Sail Offset
Mounting Centers
Inches
Forward Legs
After Legs
Minimum
Maximum
Minimum
Maximum
TIB1115/125
Super Sail Arch
TIB34600
120
170
120
170
$7,300.00
TIB34650
150
200
150
200
$7,500.00
Please call for information on specific yatch applications: certain customizable dimensions are possible at additional cost
Prices and specifications are subject to change, please call for current information.
Since the introduction of the “Tower in a Box” Sail Arch in 2009, A thousand plus sailors
have cruised tens of thousands of miles, carrying solar panels, tenders, wind
generators, and every other type of gear imaginable on their Sail Arch. Truly the “swiss
army knife” of marine structures, Cruising Sailors have taken this high quality, highly
flexible, easily adjustable structure and adapted to their personal yachts and their
personal needs. Now in answer to requests for a “Tower in a Box” Sail Arch that is large enough for Cruising Catamarans and large Monohulls, here comes the SUPER SAIL ARCH. The Super Sail Arch can handle over 1000* pounds of equipment, solar panels, and tender with outboard when the load is properly installed and distributed..
Universal Arch Makes Installations on Hundreds of Other Makes and Models Possible
Rigerous Testing Ensures Structure Performance
Every Arch includes a large (approximately 12" x 12") radar plate, plus four 4" wide mounting plates which will accommodate up to six additional antennas. Radar cables, antenna cables and other wiring may be concealed inside the frame The Arch is mounted to your boat in four locations with our proprietary "Pin & Pad" mounting hardware. These fittings have nylon bushings which help isolate any vibration in the Arch from the fiberglass surface of your boat. The "Pin & Pad" fittings also allow mounting to any angled surface, and easy dismounting of the arch (just remove the four 3/8" bolts) for storage or transport. You have a choice of 3-1/2" 5 bolt bases click here for details, or 2" diameter 2 bolt bases click here (new page, Kit #6 detail)
Everything is included for a complete installation on most boats, even backing plates.
:
*Ultimate working weight capacity off the structure is dependent on many factors all of which are variable, including the installed beam dimension, strength of the mounting areas on the yacht, pre-load, distribution of weight across the structure. Please consult with us regarding intended usage if you have any question about capacity
Available Options:
Atlantic Towers manufactures a wide variety of fittings and specialty hardware that allow Sail Arch owners to design and build a variety of individualized applications. Including Solar Panel array supports. Davit arms, lifting eyes, outboard motor brackets, etc.
KIT77700 - Side Mount: $299

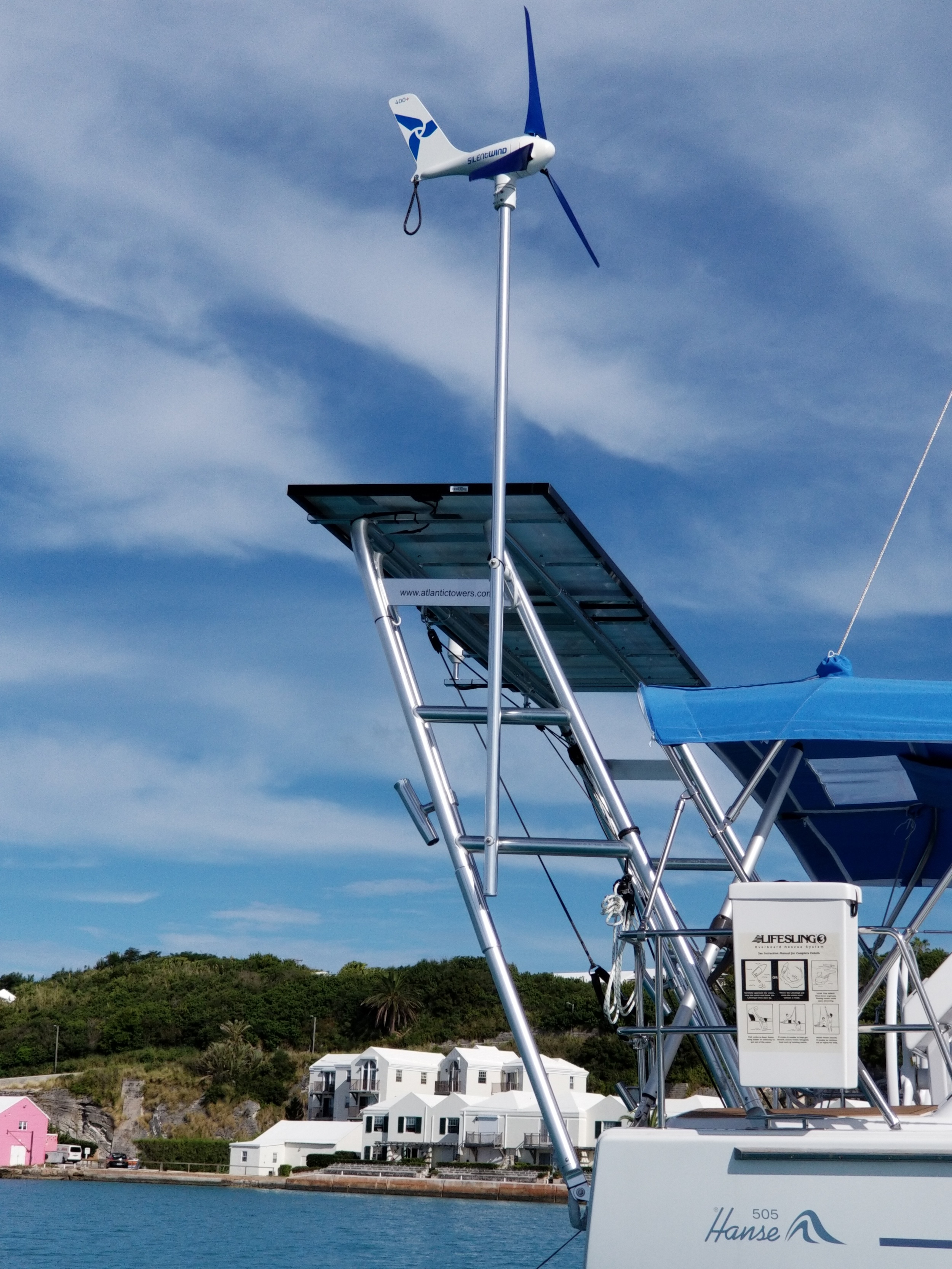

Wind Generator Mast. Comes with a 40' length of 1 1/2" Schd.40 which can be permanently fitted into the receiver with two part epoxy, or made removable with the use of machine screws or quick release pins. The 1.90" outer diameter of the 1 1/2" schd.40 pipe fits many popular wind generators.
KIT79000 Extension davits. Sold as pairs $699

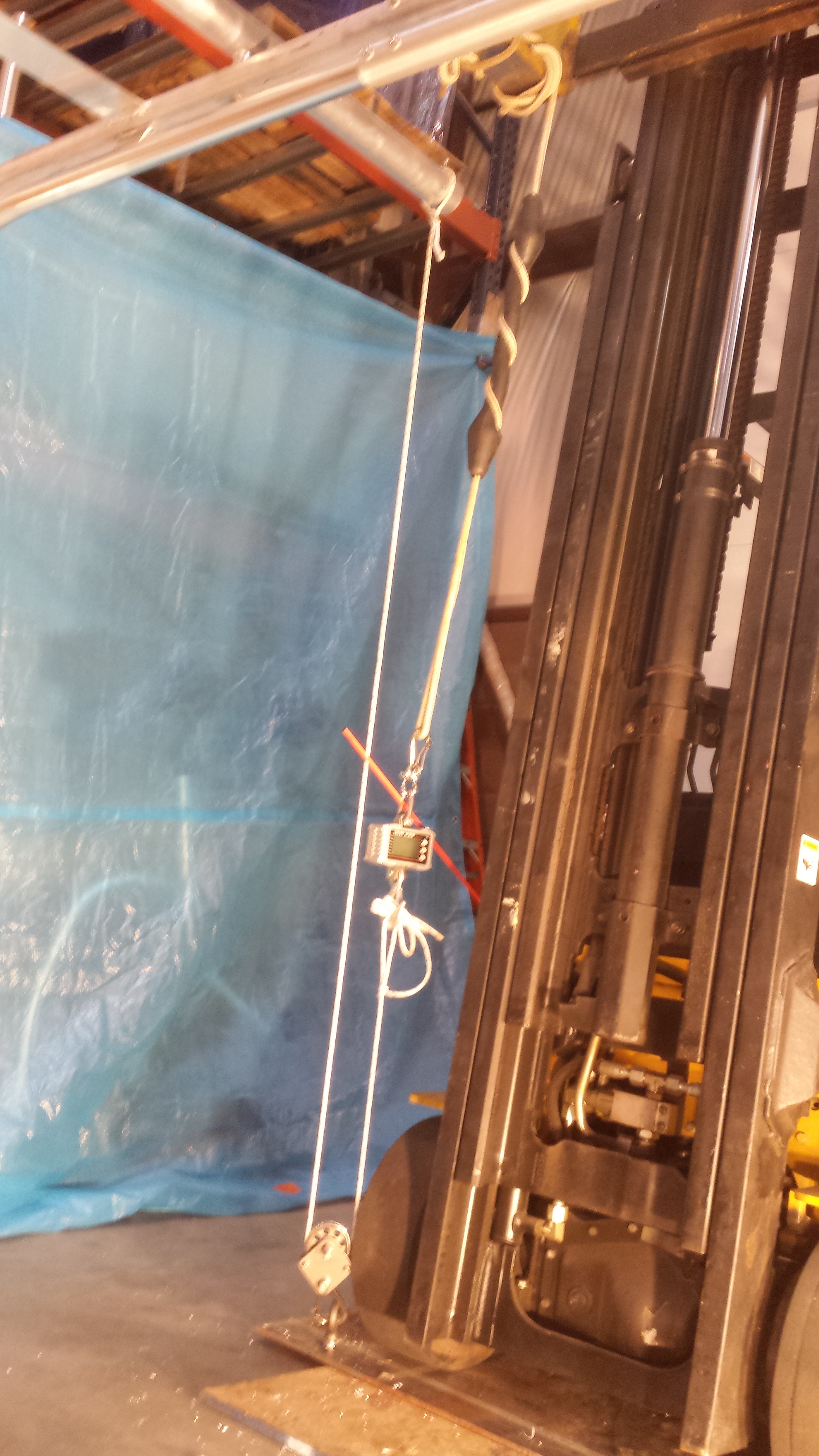

Can be mounted to top of arch to extend the "pick point" of the lifting eyes up to 24" behind arch. Includes two 42" Schd.80 extensions, end caps, curved washers, welded lifting eyes, and all hardware needed for installation. Some drilling required.
KIT78000 Clamp Assembly/Lifting Eye. Sold as pairs $219
An extruded anodized aluminum clamp assembly that can be used to secure a lifting tackle to the arch.
Clamp on Cleat $129
An extruded anodized aluminum clamp allows you to add a cleat anywhere on the side or truss of your Super Sail Arch.
AJ30500 Adjust-O-Launcher Need more rod holders? Individual Adjust-O-Launcher aluminum rod holders can be mounted anywhere on the perimeter of the Sail Arch framework. A unique patented design available exclusively from Atlantic Towers, manufactured from all aluminum in natural aluminum or gold anodized finish Adjust-O-Launchers can be pivoted thru 12 positions for unmatched flexibility. Fits all marine standard 1-1/2” pipe (1.90” o.d.) AJ30500C Clear Anodizing: $119.00
AJ30500G Gold Anodizing: $129.00
Kayak or Paddleboard Rack
Made from 1 1/2" schd. 40 anodized aluminum pipe with an outer diameter measuring 1.9" and features eye bolts for tying down equipment along with grip rail to prevent any slipping or damage. With three different clamp on or bolt on versions available, the rack can be clamped or bolted to existing arches, hardtops, davit systems, bow rails, and foredecks. $299
Can I install the Arch myself?
The Arch was designed for owner installation and is typically no more complicated than installing rod holders or outriggers, just a few more pieces. If you are comfortable with hand tools, the Arch comes with instructions and all the backing plates and hardware required for a thru bolted installation. (Don’t want to install the Arch yourself? Check our “Services” page for professional installers with whom our customers have had a good experience)
How is the Arch shipped to me? Although the Arch is not heavy it is too large to go by UPS. We have discounted freight arrangements with several trucking companies, which cover all 48 states and Canada. We can also ship to Alaska, Hawaii and any overseas city, call us for details. The Arch is packed in a single large cardboard carton and normally ships to a commercial address
What happens if my Arch is damaged in shipping?
Atlantic Towers wants you to enjoy your boat, not spend the season chasing a freight claim. If your Arch arrives damaged, just refuse the shipment and we will send you a new one at no additional cost to you.
Can I return my Arch if I decide I don’t want to keep it?
Atlantic will accept the return of any Standard Structure within 30 days of it’s receipt by you. Simply return the Structure in the original packaging in new condition freight pre-paid and we will refund the purchase price less a 10% restocking fee
Is my Arch guaranteed?
Yes, for 5 years, see the warranty section of our website for details.
**NOTE: There is a 10% re-stocking charge for cancelled or returned merchandise**
