The Budget Boat Tower Kit

Step 2

Assembling the Legs

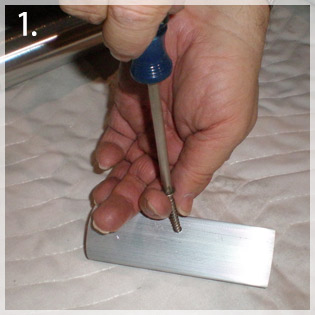

1. Insert screw in internal sleeves, leaving about ½" protruding.


2. Mix just enough two part epoxy to cover ½ of an internal sleeve.

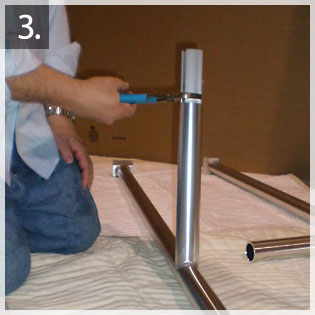

3. Spread epoxy over ½ of sleeve and insert in cross bar of a forward leg. You will need to squeeze the sleeve to get it started, and then tap it into place with a mallet or hammer until the screw is against the end. The epoxy cures rapidly. Scrape off excess epoxy, and clean finished surfaces before it is fully cured.

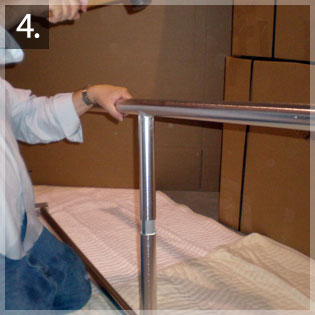

4. Spread epoxy over the exposed ½ of the sleeve and insert into the cross bar of the after leg. Tap into place, when the joint is almost closed, remove the screw from the internal sleeve and Tap the legs together until the seam is completely closed. Place the leg down on a flat surface until the epoxy cures.
